ADAS 和安全

VBOX 系统可提供一种简易且精准的方式,用于测量和验证高级驾驶辅助系统。

Racelogic VBOX ADAS 测试系统可实时测量最多三辆车的参数且其位置精度小于 2cm,让开发人员能够轻松验证其产品的有效性。

Honda、Nissan、GM、Autoliv 和 Toyota 等客户皆采用 VBOX ADAS 设备测试其安全系统。

该系统的核心是一款具有 RTK 功能的 双天线VBOX 3i ,通过无线模块连接至一个 RTK 基站或另一个相当于“移动基站”的 VBOX 3i。

VBOX ADAS 产品允许公认行业标准的测试和验证,例如 ISO 15622(自适应巡航控制)、ISO 15623(前碰撞缓冲)和 NCAP 验证测试。

Adaptive Cruise Control

Posted in ADAS 和安全

Overview

With real-time measurement of parameters from up to three vehicles and at better than 2cm positional accuracy, the VBOX testing system allows manufacturers to easily verify the effectiveness of their Adaptive Cruise Control system.

With real-time measurement of parameters from up to three vehicles and at better than 2cm positional accuracy, the VBOX testing system allows manufacturers to easily verify the effectiveness of their Adaptive Cruise Control system.

  RLVBVADAS02 VBOX Group

At the core of the system is RACELOGIC's flagship data logger, the VBOX 3i RTK (VB3iSLR), connected via radio telemetry to an RTK Base Station or to another VBOX 3i RTK acting as a moving base.

Open Road ADAS Testing

Posted in ADAS 和安全

The Moving Base test solution allows engineers to test ADAS applications on the open road. It works by linking two VBOX 3i RTK units, with the system in the subject vehicle transmitting corrections to the target vehicle at an update rate of 20 times per second.

This replaces the need to implement an RTK Base Station with a limited broadcast range, and provides engineers with the ability to test on normal roads, over reasonable distances, among other road users and roadside furniture, to under 5 cm relative positional accuracy.

The accuracy is enhanced by employing signals from the Russian GLONASS constellation as well as a method which uses refined delta positions obtained from carrier phase measurements. This reduces the noise levels of pseudo-range measurements (raw distances to each satellite) and removes positional jumps.

In order to use Moving Base, existing VBOX 3i RTK customers will need to upgrade to the latest version of VBOX and VBOX Manager firmware, as well as additional 2.4 GHz telemetry radios.

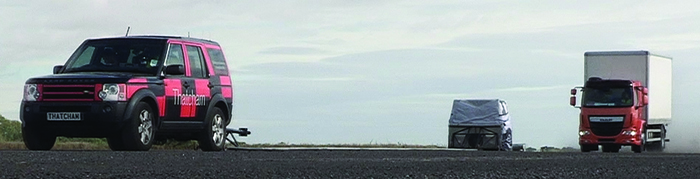

Autonomous Emergency Braking & Collision Mitigation Testing

Posted in ADAS 和安全

Overview

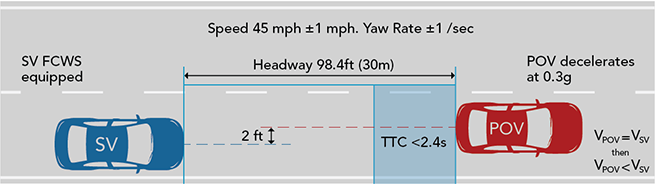

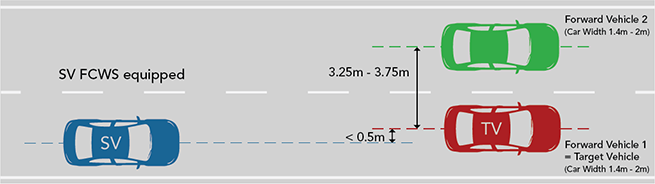

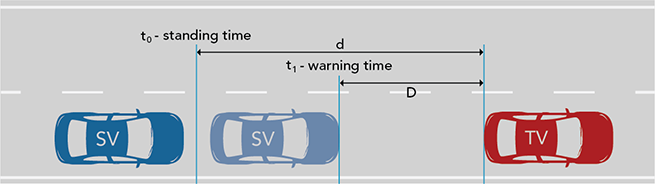

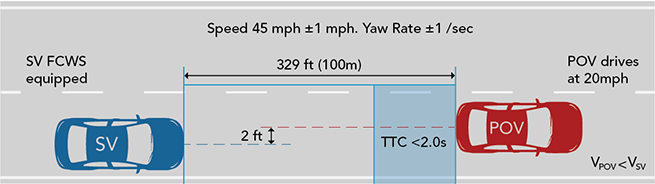

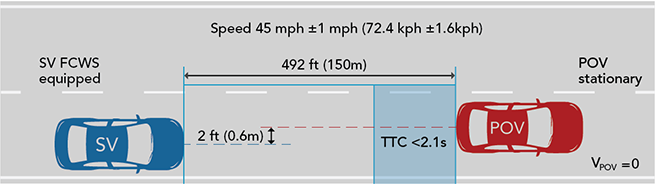

Full-ADAS-packageVBOX GPS data logging systems are ideal for the development, testing and validation of Autonomous Emergency Braking (AEB) and Forward Collision Warning (FCW).

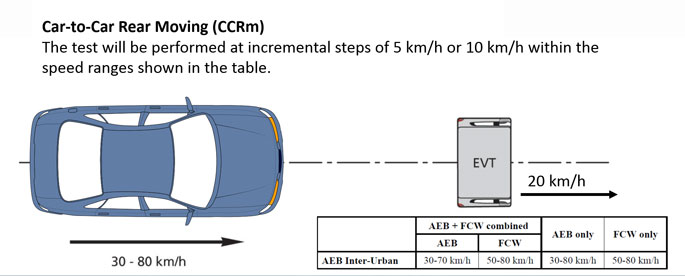

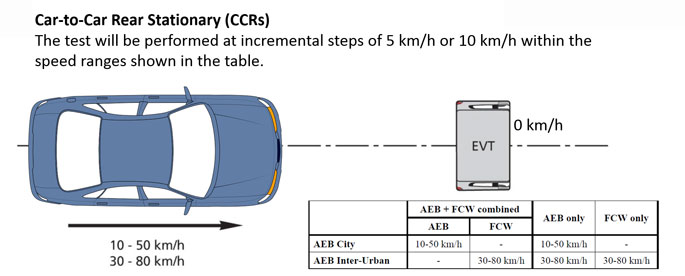

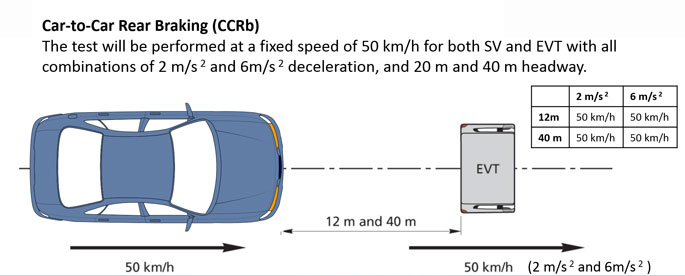

AEB and FCW are necessary features if a new passenger vehicle is to achieve a five-star Euro NCAP rating. By 2018 AEB and Lane Departure Warning systems will be mandatory for all new commercial vehicles throughout Europe (UNECE Regulation on AEBS steps 1 and 2).

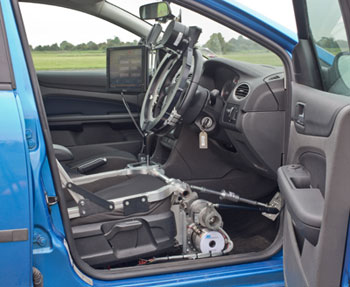

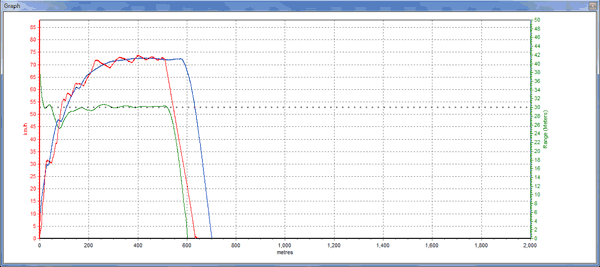

VBOX equipment provides positional accuracy to 2cm along with a real-time output of the relevant parameters required to develop such systems. When used in conjunction with Euro NCAP-approved steering and pedal robots, the VBOX 3i Dual Antenna with RTK (VB3iSLR) outputs data that meets the requirements set out in the NCAP assessment.

Testing Lane Departure Warning and Lane Keep Assist Systems

Posted in ADAS 和安全

Overview

Full-ADAS-packageWith real-time measurement and positional accuracy at less than 2cm, the VBOX testing system captures the data that developers and manufacturers require to verify the effectiveness of their Lane Departure Warning system.

At the core of the system is RACELOGIC's flagship data logger, the VBOX 3i Dual Antenna with RTK, connected via radio telemetry to an RTK Base Station.

Blind Spot Detection System Testing

Posted in ADAS 和安全

Overview

Blind Spot Detection Systems (BSDS) use cameras, radar sensors, light detection or ultrasonic systems to warn a driver whenever another object enters the blind spot area of a car.

With real-time measurement of parameters from up to three vehicles and at better than 2cm positional accuracy, the VBOX test system allows manufacturers to verify the effectiveness of their Blind Sport Detection system easily and reliably.

  RLVBVADAS02 VBOX Group

At the core of the system is RACELOGIC's flagship data logger, the VBOX 3i Dual Antenna with RTK (VB3iSLR), connected via radio telemetry to an RTK Base Station or to another VB3iSLR acting as a moving base.
