RACELOGIC has led the way in high-accuracy brake testing for more than ten years

As advances in braking technology increase, performance improvement is narrowing. It is therefore essential that the measurement of braking distances can be carried out repeatably and with very high accuracy. Due to their high accuracy, flexibility, and ease of installation (they can be moved from vehicle to vehicle in minutes), VBOX GPS data loggers are used by every major automotive and tyre manufacturer in the world.

Conducting tests with a trigger ensures that the response time of the braking system is measured along with the performance of the tyres, brake pads, discs, and other components.

VBOX data loggers are often employed in conducting tests to various official standards, such as ECE regulation R90 and 13H, and FMVSS135.

Brake Testing

Posted in Brake Testing

Overview

Modern electronically controlled braking systems are extremely efficient and are very close to reaching the optimum braking distances for a given tyre and road surface. It is therefore essential that the measurement of braking distances can be carried out with very high distance accuracy.

Due to their high precision, flexibility, and ease of installation (they can be moved from vehicle to vehicle in minutes), VBOX GPS data loggers are used by almost every automotive and tyre manufacturer in the world to carry out brake distance measurements.

There are two main kinds of braking test:

Speed Window Tests

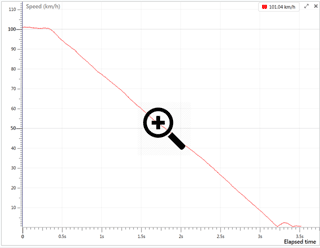

Distance travelled between two speeds is measured

Brake Trigger Tests

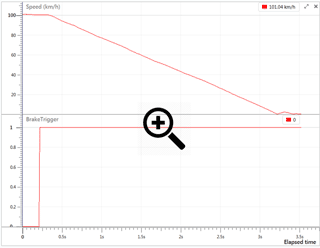

Distance travelled from the point the brakes are pressed to a standstill.

Brake-Testing-Windowed-Stop2 Brake-Testing-Trigger-Stop2

Conducting tests with a trigger ensures that the response time of the braking system is measured along with the performance of the tyres, brake pads, discs, and other components. However, during a trigger activated test, the car undergoes a complex change in attitude resulting in varying speeds across the body of the vehicle.

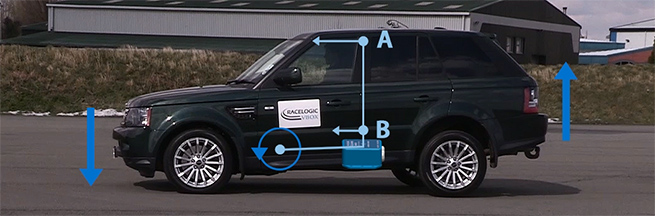

Centre of gravity corrections – or countering the 'lever-arm' effect - of testing tall vehicles with long suspension travel can be achieved with the combined use of GPS and an Inertial Measurement Unit.

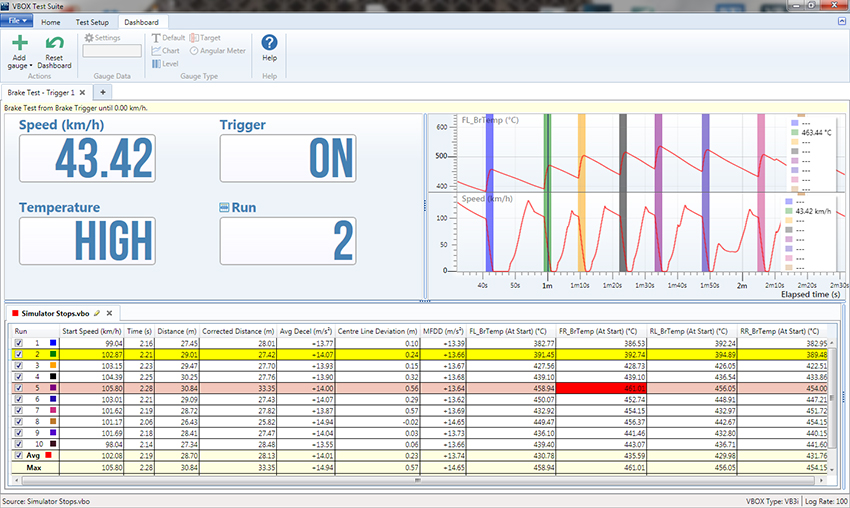

How we verify brake distance accuracies

We regularly verify the brake test measurements obtained by the VBOX unit against a light barrier, laser, and RTK DGPS setup with Base Station to confirm a positional accuracy of better than 2cm.

We also captured the test on our LabSat GPS simulator, which records the raw GPS signals and the brake trigger input, and allows us to replay it through any VBOX on the bench. This gives us a repeatable reference to check against any new firmware or hardware updates, and maintains a high standard of brake testing accuracy.

Learn more about GPS Accuracy here.
