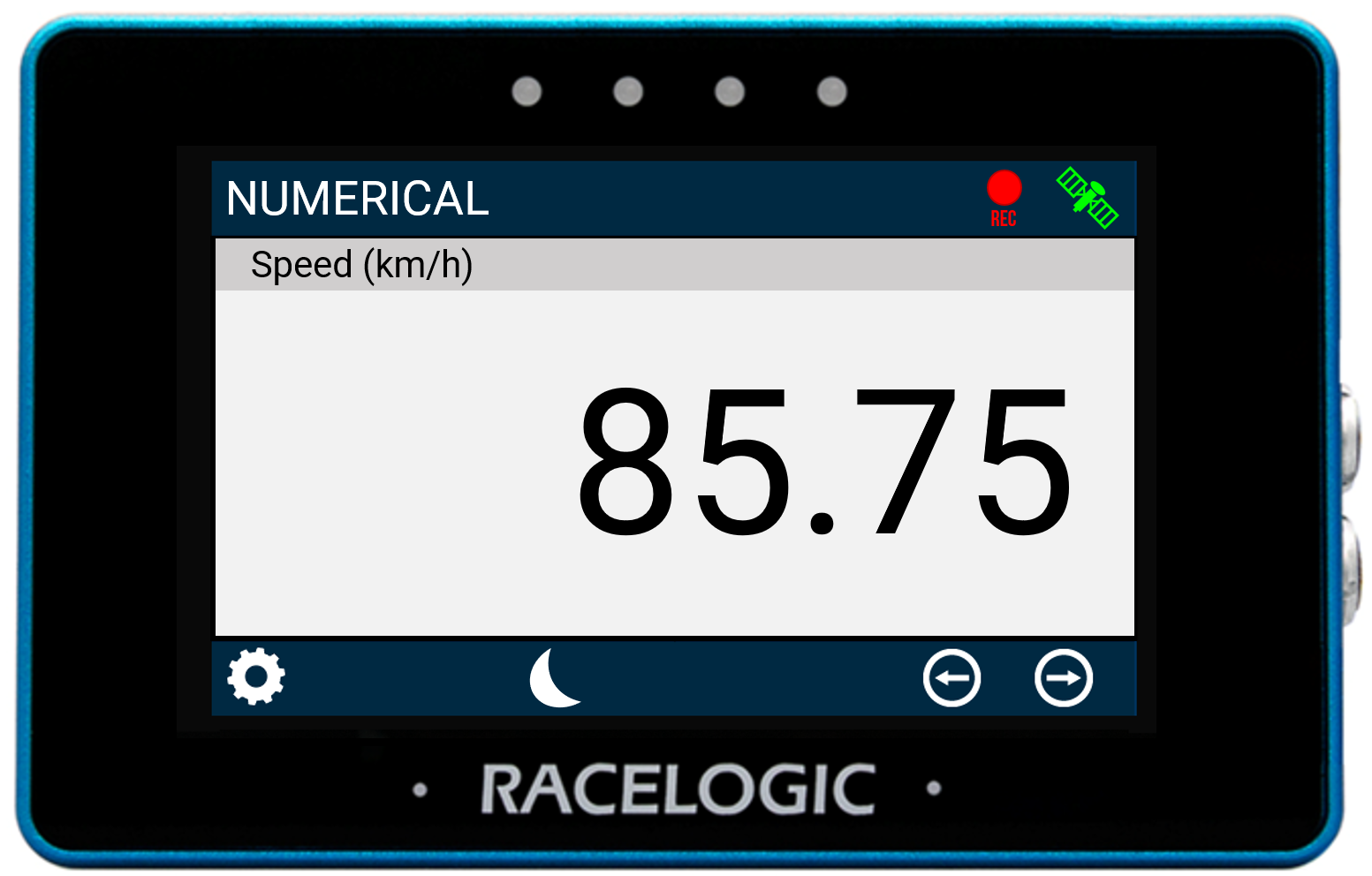

OverviewThe Multi-Function Touch Display (MFD Touch) is the perfect addition for anyone that already owns a VBOX 3i data logger. It is designed to show data from GPS derived channels, such as speed and heading, that are outputted from a VBOX 3i, over CAN. It can also calculate and present performance test results, live from the test vehicle on a large colour screen.
It has a 4.3” daylight readable, responsive colour touchscreen, that is extremely customisable. There are four fixed screen layouts that you can easily configure directly on the device, by choosing which channels you wish to see for each test. Additionally, performance test results can be viewed instantly on the 4.3” TFT screen, as well as written to an SD card.

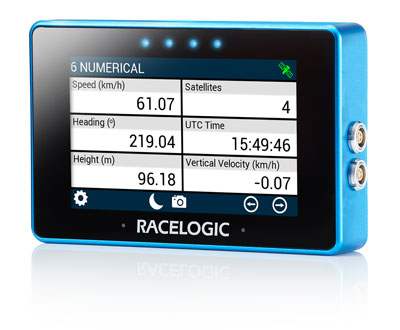

Up to six parameters can be displayed on a single screen, such as speed, lateral & longitudinal acceleration, radius of turn, distance travelled, heading and various brake test channels.
The MFD Touch can be mounted directly on the windscreen and comes with a heavy-duty suction cup. It also provides audio and visual alerts, via the inbuilt speaker and LED status lights, to show when a user defined data condition or test condition (such as a target speed) has been met, so that the driver knows when to perform a particular action, such as applying the brake pedal.
