VBOX Mini Input Module

Posted in Modules

Overview

The Mini Input Module (RLVBMIM01) is a general purpose input/output module designed for use by either the VBOX Mini or existing VBOX products.

The Mini Input Module allows data such as temperature, RPM, wheel speed, fuel flow, throttle angles and pedal forces to be easily measured along with the VBOX GPS data.

The module can accept 8 analogue inputs, 2 digital inputs, an additional digital state input for use as an event marker, and 2 K-type thermocouple inputs.

When used in conjunction with a VBOX Mini, the Mini Input Module can also output one digital and one analogue signal. Connections are via a removable screw terminal.

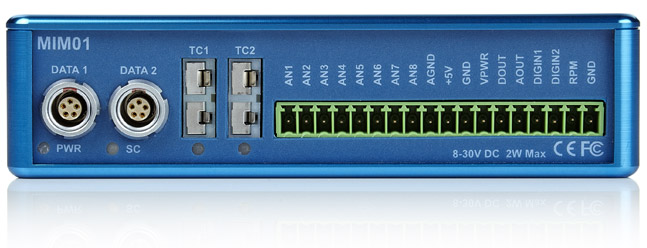

RLVBMIM01-Connectors
