Brake Temperature Monitoring App

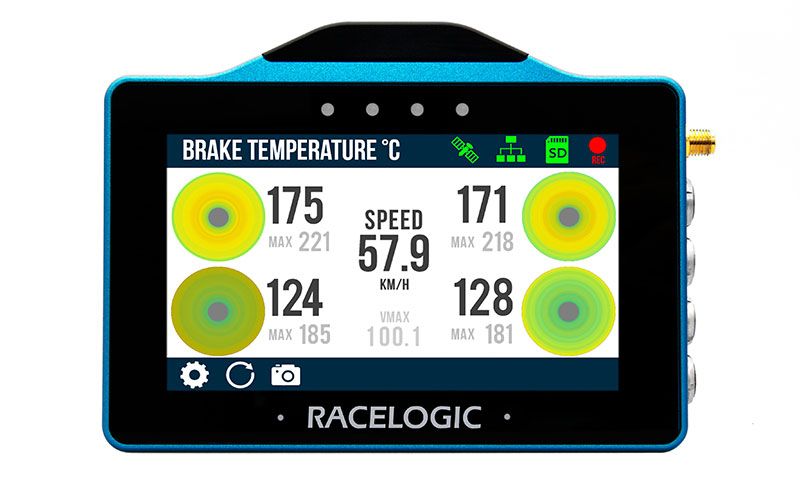

The Brake Temperature Monitoring app provides you with a real-time display of the temperature of each brake disc while on track. This is invaluable information when looking for the optimum brake bias and tyre setup for a race.

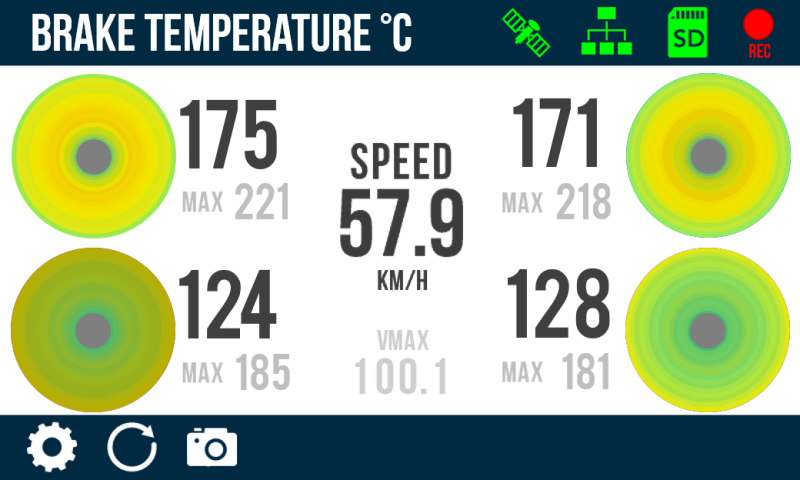

The responsive, colour display offers a visual representation via 64 individual heat maps, as well as live and maximum temperature values.

In order to use this app, you must also purchase the Brake Temperature Monitoring Sensors & Wiring Loom (RLACS314).

1. Download the latest update file below
   (Your unit must be registered to receive the required login details for the download. Register here.)
2. Unzip the folder and place the .rvf file on to the root directory of the SD card (not in the media or any other folder).
3. Insert the SD card into the side panel of the unpowered unit.
4. Power up VBOX Touch.
5. Confirm the update by pressing OK. The unit will then display an update screen with a progress bar.
6. Once complete, the unit will restart.

Once the firmware is successfully loaded on to the unit, the file will be removed from the SD card.

• [New] Speed and VMAX parameters have been added to the BTM main screen.
• [New] Prevent VMAX from resetting to zero after power cycle.
• [New] VMAX no longer resets when speed = 0.

Full Release Notes
