Multi-Function Display App

  • Released: 3 August 2023

  • Version:

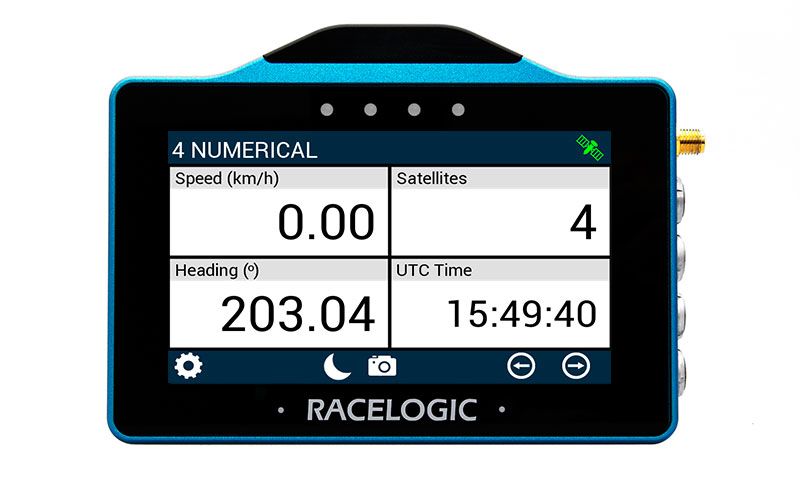

The Multi-Function Display app allows you to use the VBOX Touch as a display when connected to a VBOX 3i.

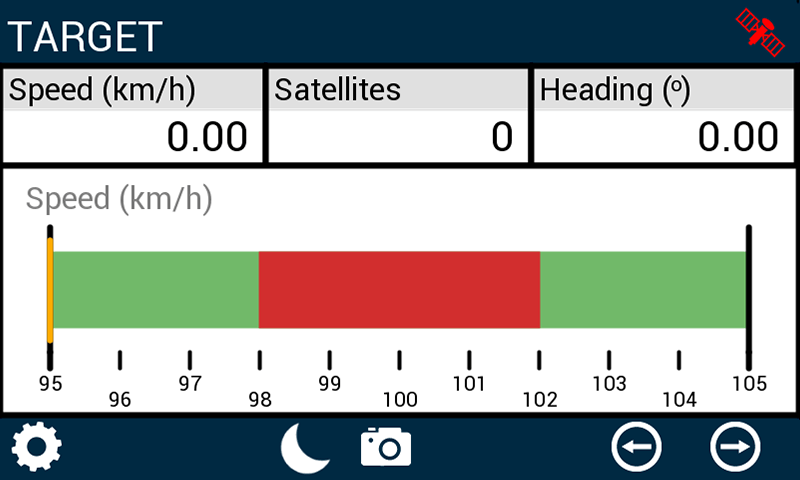

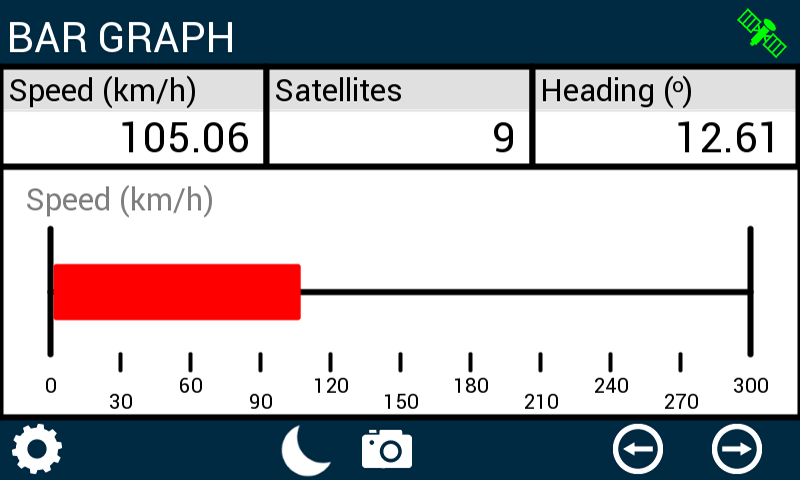

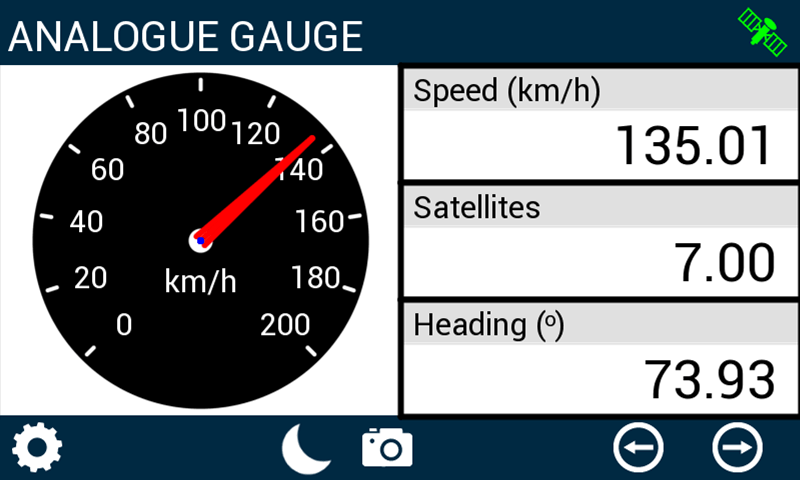

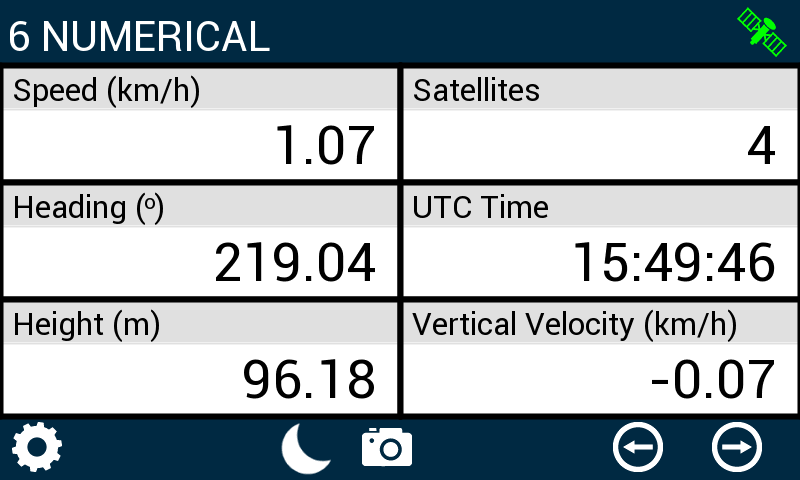

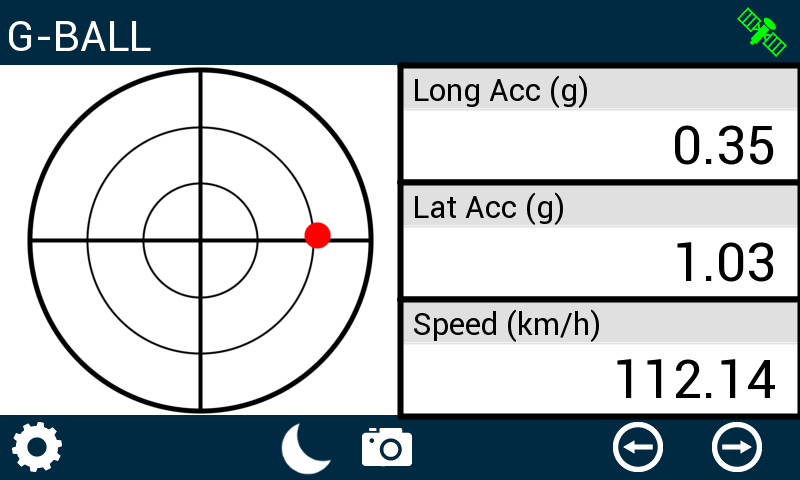

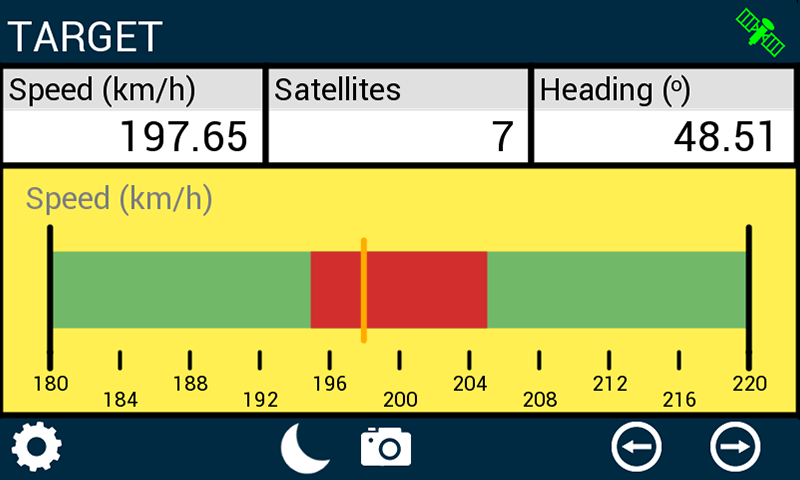

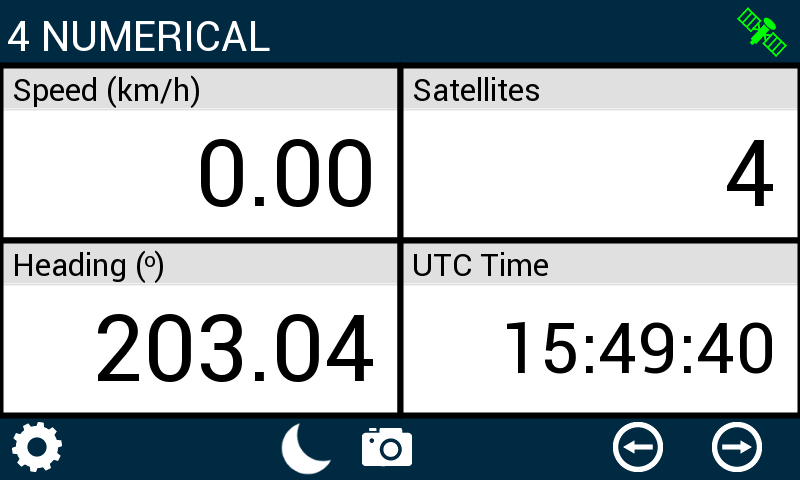

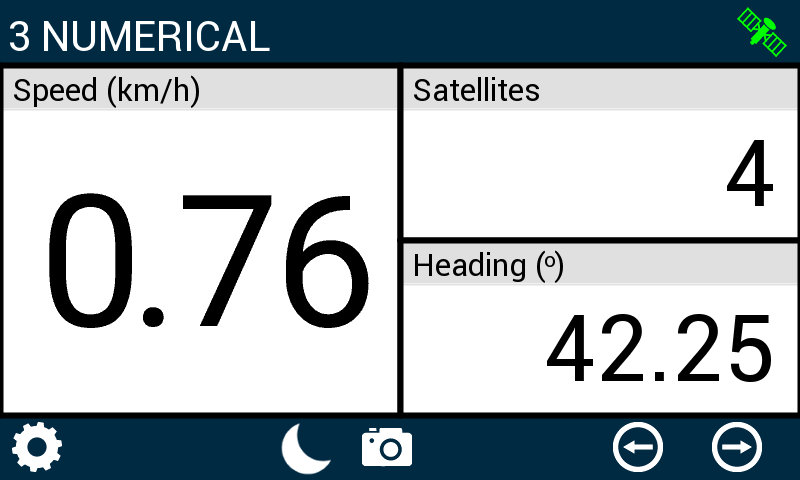

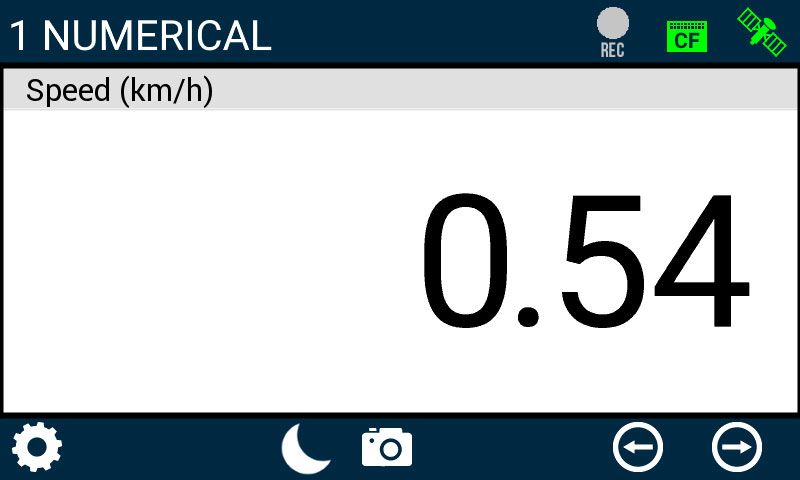

It will show data from GPS and CAN-derived channels that are outputted over CAN. Up to six parameters can be displayed on a single screen, such as speed, lateral & longitudinal acceleration, radius of turn, distance travelled, heading and various brake test channels. It can also calculate and present performance test results, live from the test vehicle.

You will need the cable 'RLCAB005-C' to connect VBOX Touch to a VBOX 3i.

A beta for VBOX 3i ADAS users is available.

  1. Download the latest update file below
    (Your unit must be registered to receive the required login details for the download. Register here.)
  2. Unzip the folder and place the .rvf file on to the root directory of the SD card (not in the media or any other folder).
  3. Insert the SD card into the side panel of the unpowered unit.
  4. Power up VBOX Touch.
  5. Confirm the update by pressing OK. The unit will then display an update screen with a progress bar.
  6. Once complete, the unit will restart.

Once the firmware is successfully loaded on to the unit, the file will be removed from the SD card.

  • [NEW] Added Lap Timing testing; Able to perform circuit or point to point tests, with time at and ‘speed at’ results given for up to 6 separate split gates.
  • [NEW] Added VMAX Acceleration test type
  • [NEW] Added thermal printer compatibility; Test results will automatically print when an RLVBACS026 is connected.
  • [NEW] Added support for use with VBOX 3i ADAS
  • [CHANGE] Kalman Filter status indicator updated to match VBOX 3i front panel behaviour.
  • [CHANGE] Increased IMU Kalman Filter status reports to improve user troubleshooting.
  • [FIX] Text colour no longer reset when changing selected parameter
  • [FIX] Acceleration and Deceleration tests no longer abort when IMU Kalman Filter is used and satellite reception is lost
  • [FIX] Removed stability issues caused by autosave file being blank.

Full Release Notes
