Electronic Stability Control Testing

Conduct 'Slowly Increasing Steer' and 'Sine with Dwell' tests to US and EU standards with VBOX

  • Test to FMVSS126 (US) and ECE R13H (EU) standards
  • No need for additional ride height sensors or accelerometer packs
  • Compatible with steering robots for test consistency
  • Highly accurate speed, distance, heading and yaw rate measurements
  • Real-time output of all measured parameters

Validate your ESC system with VBOX


When coupled with an IMU, the 100 Hz VBOX 3i provides highly accurate speed, distance, heading and yaw rate measurements that can be used to validate your ESC system to both the US FMVSS126 and EU ECE R13H test standards.

The VBOX 3i can be used with both Anthony Best Dynamics and VEHICO steering control robots to ensure consistency, and all measured parameters are displayed in real-time, to reduce the need for post-test analysis.

Highly Accurate

The VBOX 3i data logger provides high accuracy speed, distance and headings measurements.

Robot Integration

VBOX equipment can be used with Anthony Best Dynamics and VEHICO driving robots, to achieve the necessary level of consistency.

Live Display

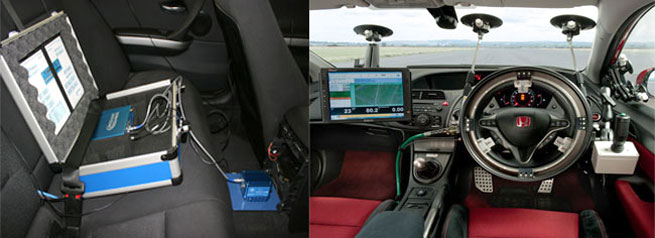

VBOX Test Suite installed on a Windows device within the test vehicle offers real-time display of all measured parameters.

Standard-compliant

Allows for compliance testing to FMVSS126 and ECE R13H verification standards.

Cost Effective

Cost effective compared to the combination of accelerometers, ride height sensors and radar traditional used for ESC testing.

Intuitive Analysis Software

Our user-friendly, intuitive data analysis software makes the process of recording and analysing your test data as quick and easy as possible.

VBOX Test Suite analysis software

Our user-friendly, intuitive data analysis software makes the process of recording and analysing your test data as quick and easy as possible.

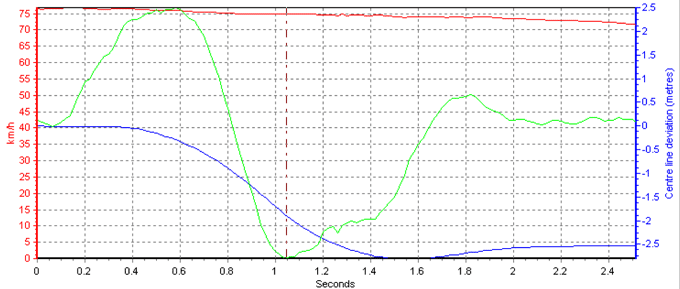

Multiple data sets can be analysed simultaneously in the workspace area, with a separate tab for each test ensuring all your data is available on one screen.

A comprehensive report can be generated at the end of the test, providing all session information and results for post-test analysis.

Testing Equipment

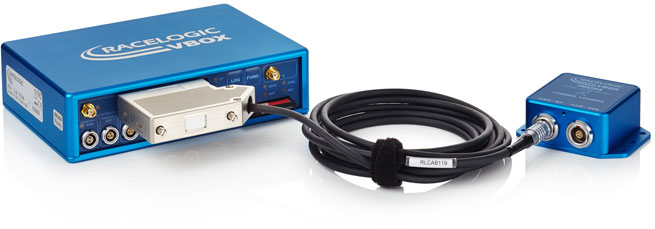

A typical ESC test setup consists of a VBOX 3i 100 Hz data logger and an IMU04 (Inertial Measurement Unit), which are often used alongside steering control robots manufactured by Anthony Best Dynamics or VEHICO.

Measured Parameters

  • Vehicle speed (0.1 km/h RMS)
  • Vehicle heading (0.1° RMS)
  • Yaw rate (0.014° /s)

High Accuracy Data

Using the latest GPS / GLONASS receiver that updates 100 times per second, the VBOX 3i is ideal for high dynamic applications.

Pitch, Roll and Yaw Measurements

Our IMU provides highly accurate measurements of pitch, roll and yaw using three rate gyros, as well as x, y, z acceleration via three accelerometers.

Robot Integration

VBOX equipment can be used with Anthony Best Dynamics and VEHICO driving robots, to achieve the necessary level of consistency.
