Blind Spot Detection System Testing

Verify the effectiveness of your Blind Spot Detection System

  • Measure parameters from up to four vehicles in real-time
  • Log the vehicle's BSD operational data alongside GPS data
  • Centimetre-level positional accuracy
  • Synchronised HD video and data from the test vehicle
  • Map up to 24 contact points on the vehicle

Test your BSD system with VBOX

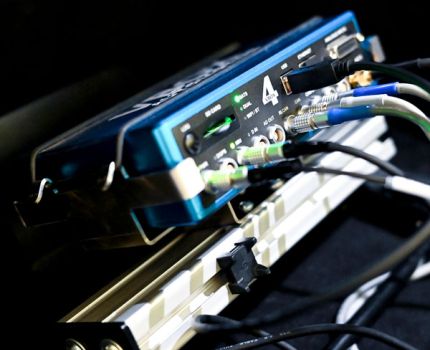

With real-time measurement of parameters from up to four vehicles and cm-level positional accuracy, the VBOX testing system allows manufacturers to easily verify the effectiveness of their Blind Spot Detection system. At the core of the system is RACELOGIC's flagship data logger, the VBOX 3i RTK, connected to an RTK Base Station, an NTRIP Modem or to another VBOX 3i RTK (acting as a moving base).

Highly Accurate

The VBOX 3i RTK data logger provides high accuracy speed, position and heading data, with centimetre-level positional accuracy.

Open Road Testing

When using correction messages from a second VBOX 3i RTK (VBOX Moving Base) or an NTRIP correction service instead of a fixed base station you can test and verify active safety systems outside the test track.

Live Display

VBOX Test Suite installed on a Windows device within the test vehicle offers real-time display of all measured parameters including separation time, long/lat separation and BSD signal output.

Multiple Targets

The 'Multiple targets' feature of the BSD test equipment is capable of calculating parameters from three target vehicles and the lane at the same time.

Video Integration

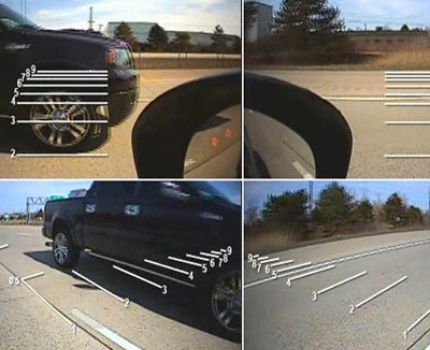

When used in conjunction with a VBOX video system, the measured parameters can be graphically overlaid in real-time onto the recorded video, providing a clear visual reference to the performance of the test.

Intuitive Analysis Software

VBOX Test Suite is free to all VBOX users and is available in ten different languages, making it easy to test in real-time or post-process your data.

VBOX Test Suite

Our user-friendly, intuitive data analysis software is free to all VBOX users and simplifies the process of testing and validating your ADAS systems, live from the test vehicle.

  • Real-time and post-event data analysis
  • See synchronised video and data from your tests
  • Customisable layout
  • Create your own custom tests
  • Available in ten different languages
  • Easily create charts, tables and reports

Testing Equipment


Blind Spot Detection systems can be tested and validated on the test track using a static DGPS Base Station, or on the open-road, using either an NTRIP solution or Moving Base setup. Depending on your test requirements, you can choose between three VBOX system bundles.

  • Full ADAS System
  • Vehicle Separation System
  • Video VBOX Pro

Measured Parameters

  • Speed of target and subject vehicle (0.1 km/h RMS)
  • Separation time (0.05 s)
  • Longitudinal separation (0.02 m RMS)
  • Lateral separation (0.02 m RMS)
  • Yaw rate for target and subject vehicle (depends on antenna separation)
  • Angle to target vehicle (0.1º RMS)
  • BSD warning signal output

RTK for High Positional Accuracy

Using RTK correctional data from an RTK Base Station or NTRIP solution provides positional accuracy that's within a cm, on the test track or on open roads.

You can easily validate the accuracy and effectiveness of your Blind Spot Detection system in real-world environments.

Video Integration

A VBOX video logger can be used to combine accurate data with graphically overlaid video from up to four cameras.

Graphical overlay is totally user configurable and can be easily altered to present relevant information according to the tests being conducted.

Open-road ADAS testing

By substituting the DGPS Base Station with a second VBOX 3i RTK, our Moving Base test setup allows you to test and verify ADAS safety systems on virtually any road. The Moving Base setup allows you to measure with a relative positional accuracy between subject and target vehicle, to within 5 cm, and can maintain RTK lock between VBOX units with up to 600 m of vehicle separation.

Alternatively, if you require cm-level position accuracy, you could use an NTRIP modem, that is connected to the VBOX 3i RTK in both vehicles.

Survey Pole for Vehicle Mapping

It is now possible to ‘map’ the shape of vehicles using a survey pole, antenna, and VBOX Manager. Up to twenty-four points around the vehicle bodies can be surveyed, and the ‘shape’ of each car can be stored for later use.

As the test is conducted, the distance of the closest contact points between the vehicles is calculated to cm-level accuracy, automatically switching to the nearest contact points as they change with the car’s relative positions.

Logging Blind Spot Warning Signals

If you cannot use the vehicles' own CAN system, an AVAD3 audio & visual detector from DTC Solutions can be used alongside VBOX to record when an ADAS system has become active. The AVAD3 is capturing acoustic and optical alerts and signals generated by the vehicle's advanced driver assistance system.

It produces a CAN or digital signal when recognising changes of the shapes and colours of defined icons or when audible signals are identified. The output of the AVAD3 can then be used by the VBOX to log the exact moment the vehicle safety message is displayed to the driver.

Free Data Analysis Software

Want to save time analysing your data?

Let VBOX Test Suite do it for you. The software can be used to monitor vehicle speed and deviation in real-time from within the test vehicle, whilst providing the driver with an immediate insight into the pass or fail rate of the runs being performed.
