VBOX 4 ADAS

Outstanding positional accuracy and flexible test configurations exclusively for ADAS testing

  • Multi-constellation and dual frequency 100 Hz GNSS RTK receiver
  • Combines IMU and wheel-speed data to maintain accuracy
  • Resilient RTK for reliable test-track and open road testing
  • Intuitive set-up software for complex ADAS scenarios
  • Free lifetime customer support
View specifications
Get a quote

ADAS Testing Just Got Easier

Dedicated ADAS testing

Building on the key features that made VBOX the industry standard data logger for automotive testing and validation, VBOX 4 ADAS has taken the evolution of this family of data loggers and created a whole new species dedicated to ADAS testing.

Outstanding Accuracy

The VBOX 4 ADAS GNSS receiver, which is multi-constellation and dual frequency, delivers outstanding RTK signal reacquisition and resilience, ensuring you spend more time logging RTK accurate data on both the test track and the open road.

Easy Set-up

You can fully customise ADAS test setups, with the vehicle under test able to simultaneously reference any combination of up to five moving and static targets, three road-line references and 99 signposts. Tests requiring multi-target and multi-lanes can be easily configured to validate ADAS systems.

NCAP-compliant

The VBOX 4 ADAS offers Euro NCAP-compliant logging rates (100 Hz) and a positional accuracy of less than 2 cm, when used with an RTK Base Station or NTRIP device.

Full CAN bus logging

Capture the full CAN bus, including CAN FD, without needing to pre-selection of channels.

Find out more

Dedicated ADAS Testing

Evaluate the full range of ADAS scenarios with customisable parameters and intuitive data analysis in VBOX Test Suite software.

Free Lifetime Support

Benefit from comprehensive support and software updates at no additional cost for the entire lifetime of your VBOX product.

Read more

IMU data integration

VBOX 4 ADAS has the ability to utilise data from a VBOX IMU and uses a Kalman Filter to improve all parameters measured in real-time at 100 Hz.

More on IMU05

Real-time testing

Connect to a laptop or tablet via USB, Bluetooth or Serial for real-time display and analysis of test data in the field.

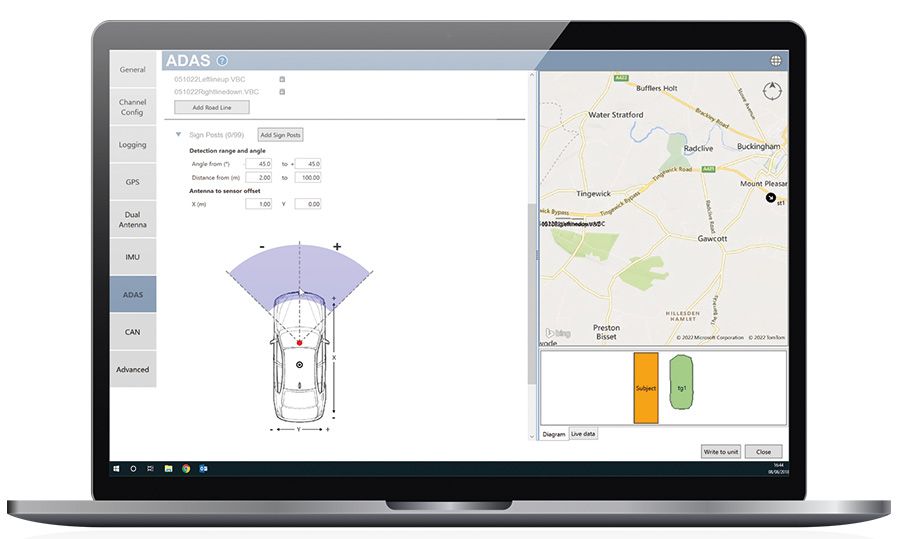

Intuitive Setup Software for Complex ADAS Scenarios

The test configuration process has been significantly improved, with all configurations and file management now conducted in VBOX Setup (instead of VBOX Manager).

Smart illustrations, active guidance and instantaneous feedback give you the ability to see your configuration as it comes together and easily make corrections if necessary.

RTK Positioning Correction Service

We offer flexible options to access the Topnet Live GNSS Positioning Correction Service within Europe with the purchase of any RTK enabled VBOX test solution.

Find out more

Test in areas with poor satellite coverage

VBOX 4 ADAS offers IMU integration, which means you can reliably test in areas with limited or no satellite coverage, such as tunnels, deep urban canyons and test tracks with heavy tree lining.

The VBOX 4 ADAS's GNSS receiver provides highly accurate measurements of position, velocity and distance in areas with a clear view of the sky. However, as you start to lose visibility of the satellites in built-up or obscured areas, the accuracy of the data typically starts to drift.

By combining wheel speed data from the vehicle's CAN bus with GNSS and Inertial data from a VBOX IMU, the VBOX 4 ADAS can maintain the accuracy of the estimated speed and position, even when you lose satellite signal.

The new IMU05

Data integration from the IMU05 is especially helpful when GNSS signal reception of the VBOX 4 is interrupted or weakened. In such cases, the VBOX 4 can still provide accurate information about position, velocity, and body angles, ensuring reliable data even when satellite signal reception is compromised.

IMU05IMU05-S
Pitch & Roll Angle
0.02°

0.013°

Yaw Angle
0.1°

<0.07°

Stability
1.2°/h

0.8°/h

The IMU05's precise measurements of roll, pitch, and yaw rate are obtained through three high-precision gyroscopes with an industry-leading bias stability of 1.2 degrees per hour. For those who need more precision, we offer the S model, IMU05-S, which utilizes MEMS high-precision gyroscopes with an even lower bias stability of 0.8 degrees per hour.

Find out more

Which applications can you test with VBOX 4 ADAS?

You can validate the accuracy of almost any Advanced Driver Assistance System using a VBOX 4 ADAS, including Adaptive Cruise Control, Blind Spot Detection, Park Assist, AEB, Lane Keep Assist and Dooring. VBOX 4 ADAS provides Euro NCAP-compliant logging rates (100 Hz) and highly accurate measurements of position, speed, attitude, separation distance and time-to-collision data from multiple vehicles.

Add-ons and Accessories

NTRIP Modem

The VBOX NTRIP Modem allows a VBOX 4 to receive positional correction data via Network RTK, without having to use a VBOX Base Station.

2.4 GHz Radios

RACELOGIC ADAS radios for V2V communication, giving relative longitudinal and lateral distances to cm accuracy.

DGNSS Base Station

The VBOX DGNSS RTK Base Station is designed to improve positional accuracy by calculating and transmitting differential correction data.

Inertial Measurement Unit

The VBOX IMU provides highly accurate measurements of pitch, roll, and yaw rate using three rate gyros, as well as x, y, z acceleration via three accelerometers.

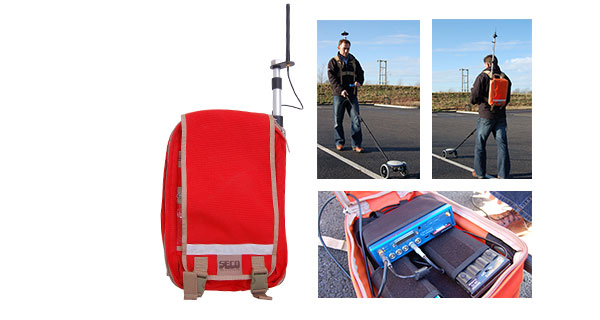

Survey Trolley Kit

Straight or curved lane markings can be mapped out and plotted to cm-level accuracy when using this survey trolley kit alongside your VBOX 4 ADAS and RTK correction system. The survey trolley comes with a line mapping rover wheel, a custom rucksack, a radio antenna and a battery pack.

ADAS Sensor Pack

A set of audio and visual sensors designed specifically to test the required elements of Euro NCAP scenarios.

Technical Specifications

Position (RMS)

Accuracy (Standalone)
V: 1.8 m; H: 1.2 m*
Accuracy with RTK
V: 10 mm + 0.8 ppm x baseline*;
H: 5 mm + 0.5 ppm x baseline*
Resolution
1.8 mm

Velocity

Accuracy
0.1 km/h
Resolution
0.01 km/h

Distance

Accuracy
0.05 %
eq. to ±1.8 cm braking accuracy
Resolution
1 cm

Heading / Timing

Accuracy
0.1° / 0.01 s
Resolution
0.01° / 0.01 s

CAN

Baud Rate
Selectable up to 1 Mbit/s
Termination
User controlled 120 Ohm
Output Rate
100 Hz
Output Latency
20 ms

CAN FD

Baud Rate
Selectable up to 1 Mbit/s
Data Rate
Selectable up to 5 Mbit/s
Termination
User controlled 120 Ohm
Max. Capture Rate
Unlimited

Analogue Input

Number of Channels
4
Update Rate
500 Hz
Input Range
±50 V
DC Accuracy
±2 mV (calibrated at 23°C)
Channel Sample Order
Synchronous

Analogue Output

Voltage Range
0-5 V DC
Update Rate
100 Hz

Digital Output

Frequency
DC to 44.4 KHz
Update Rate
100 Hz

GNSS

Signals Tracked

GPS: L1, L2
GLONASS: L1, L2
Galileo: E1, E5b
BeiDou: B1, B2a
SBAS: L1

Update Rate
100 Hz

Attitude (IMU05)

Pitch and Roll Angle (RMS)
0.02°
Yaw Angle (RMS)
0.1°
Slip Angle (RMS)
0.15°

Attitude (IMU05-S)

Pitch and Roll Angle (RMS)
0.013°
Yaw Angle (RMS)
0.07°
Slip Angle (RMS)
0.1°

*Specifications will vary depending on the number of satellites used, obstructions, satellite geometry (PDOP), multipath effects, and atmospheric conditions. For maximum system accuracy, always follow best practices for GNSS data collection.
