VBOX Sport

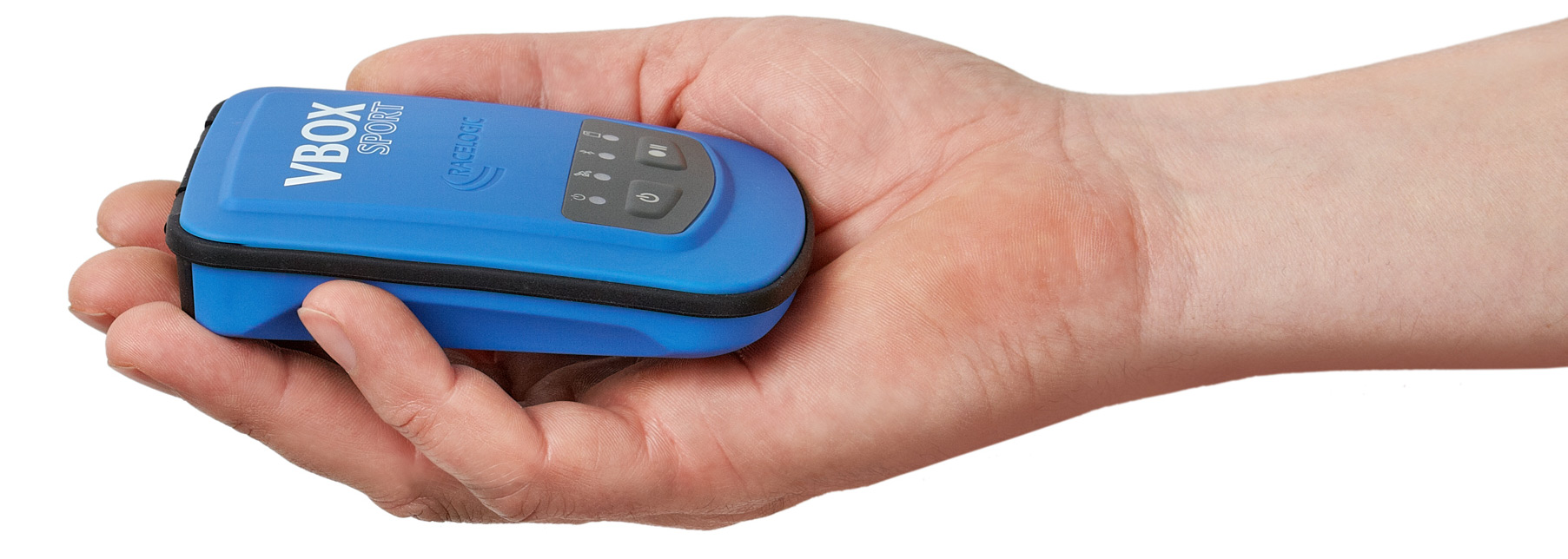

VBOX Sport is a waterproof, battery powered 25 Hz GPS data logger designed primarily to measure performance or lap times.

  • 25 Hz GPS data logging
  • Performance testing & lap timing
  • Bluetooth interface to iPhone™ or iPad™
  • Over 6 hrs battery life
  • Inbuilt and external GPS antenna
  • Robust, waterproof, and lightweight enclosure

Key Features


Inbuilt GPS Antenna

25 Hz GNSS receiver with internal patch antenna for accurate logging of performance, speed and position data. External antenna available.

Powerful Analysis Software

Post-process your data in VBOX Test Suite, our free Windows-based analysis software, or connect via Bluetooth to a Laptop running VBOX Test Suite in order to view the data live in your vehicle.

Bluetooth

A Bluetooth link to mobile devices allows you to see live results when using our free iOS apps or selected iOS/Android partner apps. You can also connect to a Windows PC, laptop or tablet for data analysis in VBOX Test Suite.

Free Apps

We have developed dedicated iPhone™ apps for VBOX Sport, 'Performance Test' and 'Laptimer', which you can download for free from the Apple App Store.

Battery Powered

VBOX Sport has an internal rechargeable battery with over six hours of battery life.

Waterproof

VBOX Sport has a robust, lightweight enclosure that is waterproof (IP 65) when fitted with connector bungs.

Compatible with 3rd-Party Apps

VBOX Sport also works with 3rd-party apps like Harry's Laptimer, RaceChrono or Porsche Track Precision.

Parameters

The VBOX Sport records the following parameters as standard:

  • Time
  • Velocity
  • Heading
  • Latitude
  • Longitude
  • Height

And from those, our software will automatically calculate:

  • Lateral acceleration
  • Longitudinal acceleration
  • Elapsed time
  • Distance
  • Radius of turn
  • Center-line deviation

Our iOS Apps

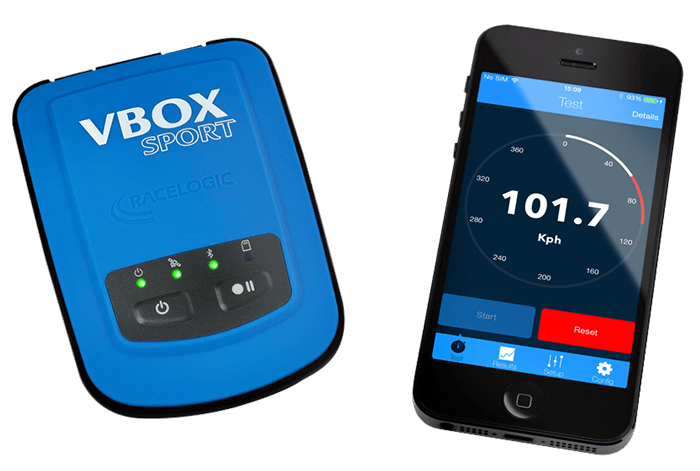

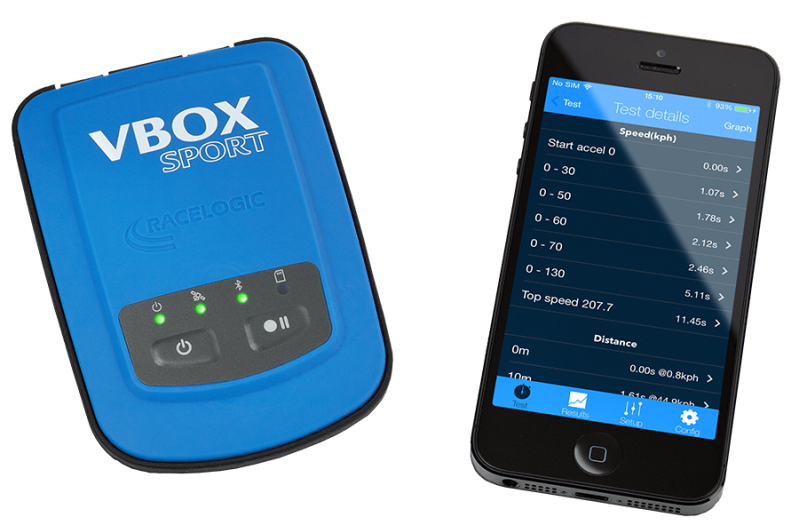

You can undertake the following performance tests with our free 'VBOX Sport Performance Test App' which you can download from the iTunes™ store. To find the app, search for 'VBOX Sport'.

  • Acceleration Testing
  • Brake Testing
  • Zero to Zero Testing
A Laptimer iPhone™ App is also available.

Our Partner Apps

VBOX Sport is compatible with the following 3rd-party apps. For more information visit the VBOX Motorsport website. If you are interested in developing apps that connect to a VBOX Sport, please read our VBOX Sport Development Portal.

Harry's LapTimer

RaceChrono

Porsche Track Precision

iLapTimer

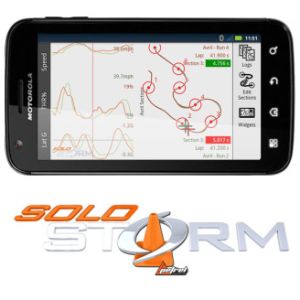

Solo Storm

Speed Logic

Free Data Analysis Software


VBOX Test Suite

Our user-friendly, intuitive data analysis software comes pre-loaded with application specific plugins that make it quick and easy to conduct tests.

  • Over 25 application specific plugins
  • Live and post-event data analysis
  • Create your own custom tests
  • Customisable layout
  • Easily create charts, tables and reports
  • Analyse data sets simultaneously

Technical Specifications


  • Update rate: 25 Hz
  • Speed accuracy: +/- 0.1 km/h
  • Position accuracy: ±2 m (95% CEP)
  • Constellations: GPS & GLONASS
  • Antenna: Internal Patch Antenna or External Antenna
  • Logging media: SD card
  • Mounting: 4 point mounting plate connects to a large range of standard mounting accessories
  • Power: 2.5 W max. (charging)
  • Input: +5 Volts only
  • IP Rating: 65 (with connector bungs fitted)
