Analogue Input Module

Allows the recording of up to 8 analogue signals to a VBOX data logging system.

  • Timer controlled transmission or polled response
  • Wide voltage input range ±50 V
  • Synchronous sampling of all channels
  • Bi-polar voltage input
  • Internal scale and offset for conversion to real data

How does it work?

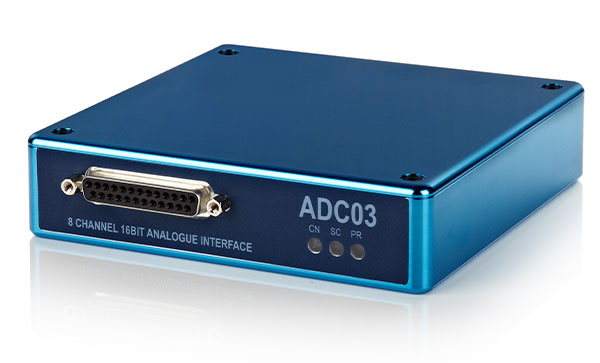

The VBOX Analogue Input Module (ADC03) is an 8-channel 16 bit analogue voltage interface for use with the VBOX range of GPS data loggers.

Each channel is electrically isolated and provides bipolar voltage measurement up to ±50 V with a DC accuracy of ±2 mV (calibrated at 23 °C). Isolated, regulated 5 V and 12 V supplies are available on the main 25-way sub-d connector in addition to a supply voltage connection.

Connection is via the VBOX CAN bus, which means the modules can be placed very close to the sensors. This technique reduces noise compared with having long analogue signal cables running from the sensors to a main logging system.

CAN connectivity also means you can have multiple modules daisy-chained around the vehicle, all sharing the same Bus.

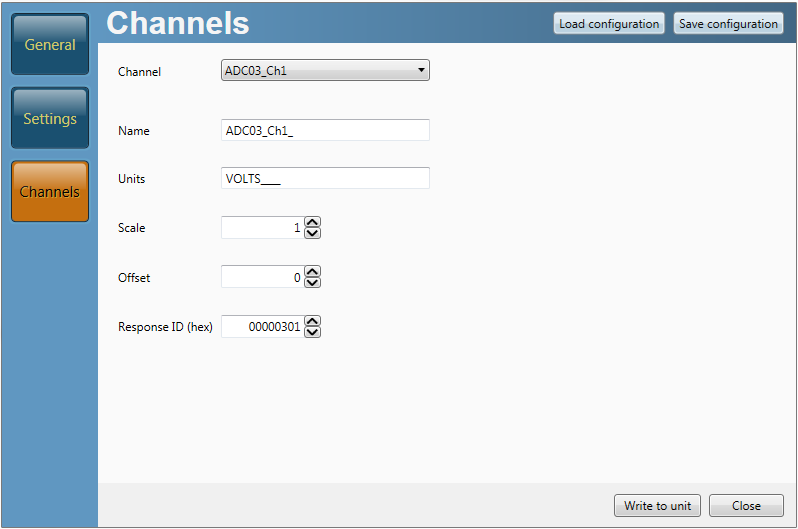

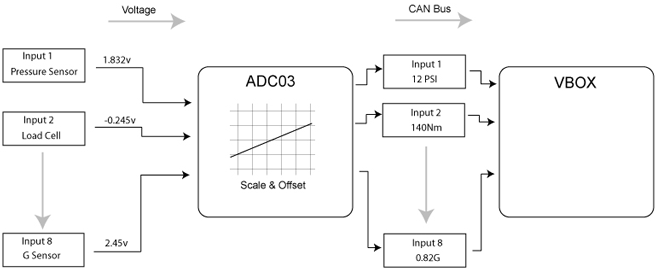

Each individual analogue channel can be separately configured for Units, Scale and Offset using the VBOX Setup Software. These values are stored inside the input module, which then transmits "real" values on the CAN bus to the VBOX.

This means that VBOX Test Suite and the Multi-function Display can show these values in real-time.

Technical Specifications


Environmental

Operating Temperature
-20 °C to +70 °C
Storage Temperature
-30 °C to +80 °C

Inputs

Number of channels
8
DC Accuracy
±2 mV (calibrated at 23°C)
Input range
±50 V
Input impedance
>100 KΩ

Power

Output voltage supply on SUB-D Connector
12 V isolated 80 mA max current draw
5 V isolated 200 mA max current draw
Supply Voltage
12 V DC
Current
650 mA

Physical

Dimensions (L x W x H)
125 x 119 x 30 mm
