Brake Force

  • Released: 29 November 2023

  • Version:

  • This app uses a Pedal Force Sensor (RLACS282) connected to the VBOX Touch via a Mini Input Module (MIM01) to measure stopping distance from a nominated pedal force to zero.

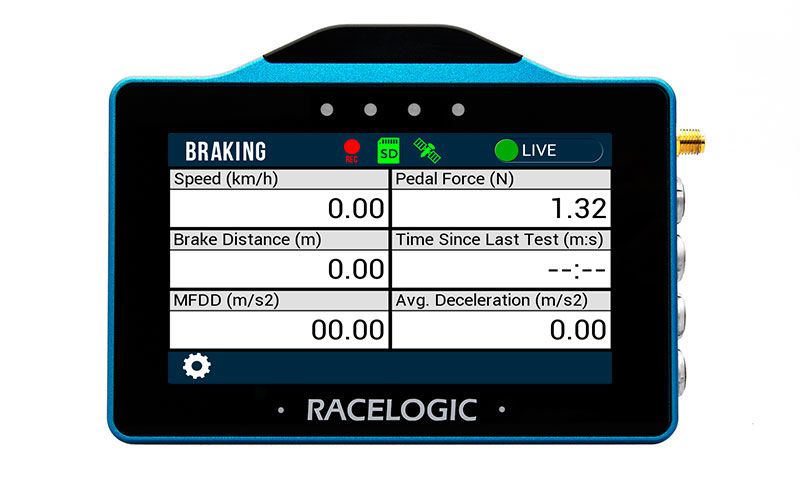

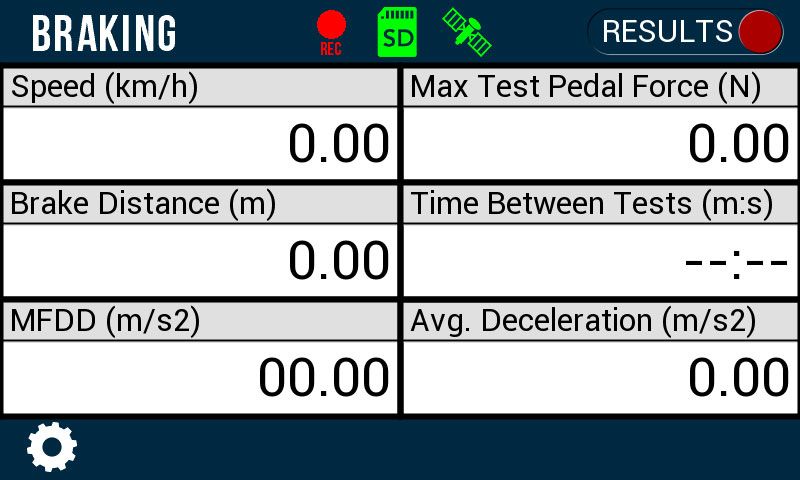

    The user can specify the pedal force at which the test should start, as well as a minimum speed threshold at which the test will start. The screen displays the current vehicle speed, the current pedal force, the braking distance, the MFDD and the average deceleration of the last completed brake stop. The results from each brake stop are automatically recorded to a text file on the SD card, along with a .vbo file that contains all the VBOX data required for post-processing using the ‘Trigger’ plugin in VBOX Test suite.

    To use this app, the Mini Input Module will need the configuration file for VBOX Touch. You must configure the Mini Input Module timer value to 10ms. The pedal force sensor must be wired into the ‘AN1’ channel of the Mini Input Module and the ‘Voltage_1’ channel must be scaled and offset correctly with the response ID remaining as ID310.

    1. Download the .rvf file to your PC.
      (The download is password-protected. You must register your unit to receive the required login details. Register here.)
    2. Place the .rvf file on the root directory of the VBOX Touch SD card (not in the media or any other folder).
    3. Insert the SD card into the side panel of the unpowered unit.
    4. Power up VBOX Touch.
    5. Confirm the update by pressing OK. The unit will then display an update screen with a progress bar.
    6. Once complete, the unit will restart.

    Once the firmware is successfully loaded on to the unit, the file will be removed from the SD card.

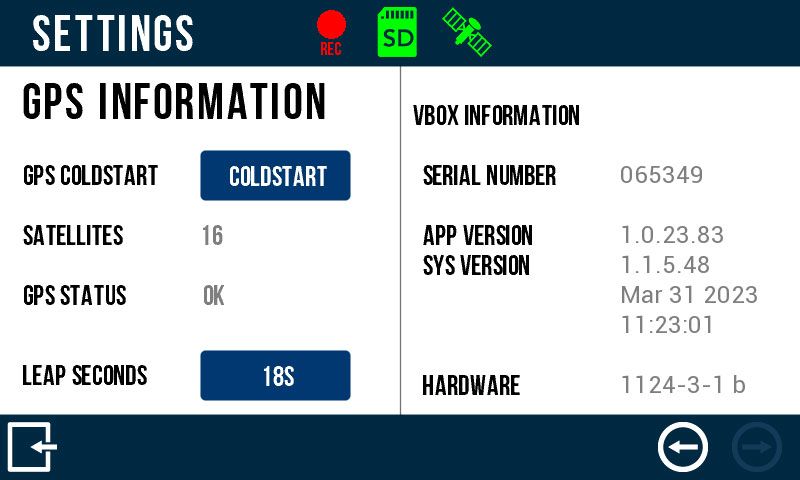

  • Version – 29 November 2023

    • Adds support for VBOX Touch hardware variants.

    Full release notes

  • Community Apps have not completed a full testing cycle and sign off. Users must be aware that the Apps may still contain bugs which can affect results.

    If you use a Community App, please provide any performance feedback to so that we can continue to improve them for all our users.

    It is your responsibility to make any shared users of the equipment aware that it is running a Community App – e.g. by fixing a temporary label to the unit.
