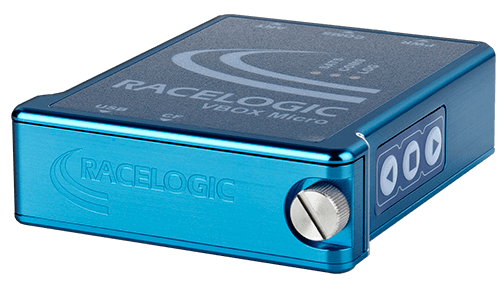

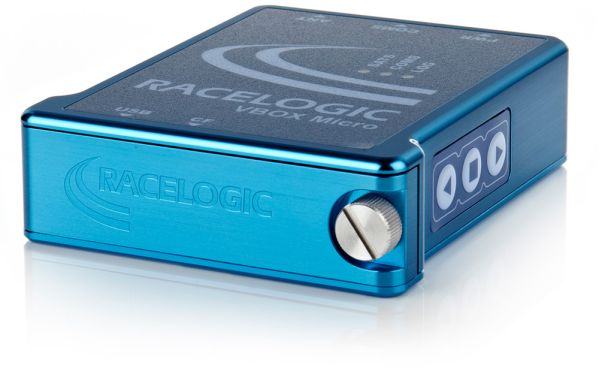

VBOX Micro

A small, waterproof GPS data logger with a user-selectable log rate from 1 to 10 samples per second.

  • 10 Hz update rate
  • CAN Bus Interface
  • User adjustable log rate
  • IP 66 rated enclosure
  • Low power consumption

Key Features


10 Hz Update Rate

Using a high performance GPS engine, data such as velocity and position are accurately recorded at 10 Hz.

Adjustable Log Rate

User adjustable log rate from 100ms/sample to 60s/sample.

CAN Interface

Logs up to 16 external CAN signals from Vehicle CAN or Racelogic input modules.

Waterproof

The aluminium enclosure is IP 66 rated, meaning it is dustproof and protected against heavy seas or powerful jets of water.

Powerful Analysis Software

Analyse your data in VBOX Test Suite using dedicated plugins, letting our software do the hard work for you.

Durability Testing

A persistent odometer channel helps track long distance tests over multiple days or weeks.

Logs to CF cards

Data is logged to Compact Flash Card at 123 bits sample which equates to approx. 110 hours on a 512 MB CF card logging all GPS channels at 10 Hz.

Parameters

The VBOX Micro records the following parameters as standard:

  • Time
  • Position
  • Speed
  • Vertical Velocity
  • Height
  • Distance since reset
  • Accumulated distance
  • Heading
  • Longitudinal acceleration
  • Lateral acceleration

You can also record other parameters, either by connecting to:

  • your vehicle's CAN bus, or
  • a suitable external input module

Applications

The small form factor, ruggedness and flexible logging rates make the VBOX Micro ideal for durability testing, fuel economy testing, and real-world verification.

VBOX Micro allows connection to other manufacturer’s CAN units and vehicle CAN. Racelogic’s vehicle CAN database can be found here.

Low power consumption means VBOX Micro can run for days on a compact battery pack (not included).

Free Data Analysis Software


VBOX Test Suite

Our user-friendly, intuitive data analysis software comes pre-loaded with application specific plugins that make it quick and easy to conduct tests.

  • Over 25 application specific plugins
  • Live and post-event data analysis
  • Create your own custom tests
  • Customisable layout
  • Easily create charts, tables and reports
  • Analyse data sets simultaneously

Technical Specifications


  • Update rate: 1 - 10 Hz (user configurable)
  • Speed accuracy: 0.1 km/h (averaged over 4 samples)
  • Position accuracy: V: 3 m; H: 10 m (95% CEP, 10 Hz)
  • Constellations: GPS
  • Antenna: External GPS Antenna
  • Logging media: Compact Flash Card
  • Input Voltage Range: 6 – 30 V DC
  • Operating temperature: -10°C to +60°C
  • Weight: Approx. 275 grams
  • Size: 105 x 85 x 30 mm
